Welcome To CUBICLE WORLD INDUSTRIES PVT. LTD.

CW Shine Nylon

PRODUCT DESCRIPTION

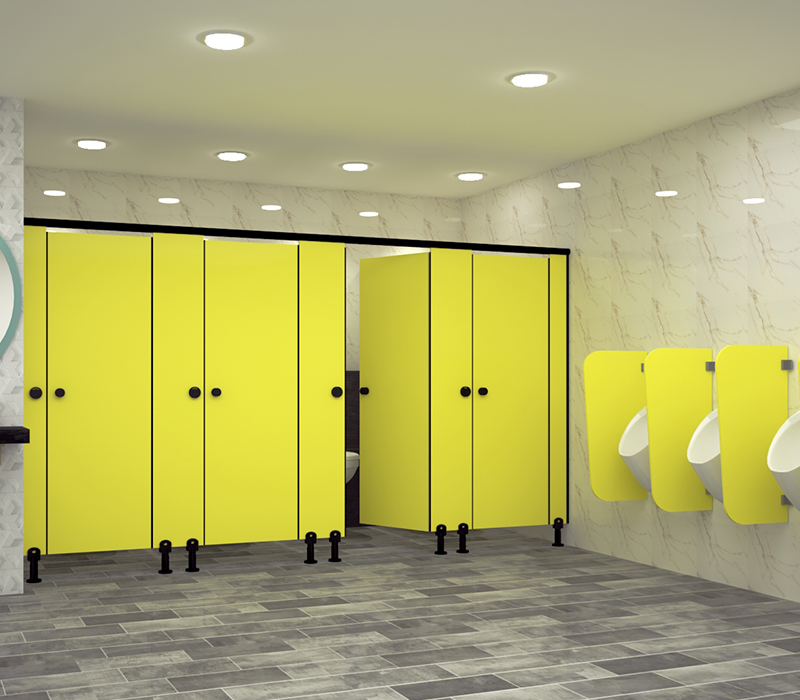

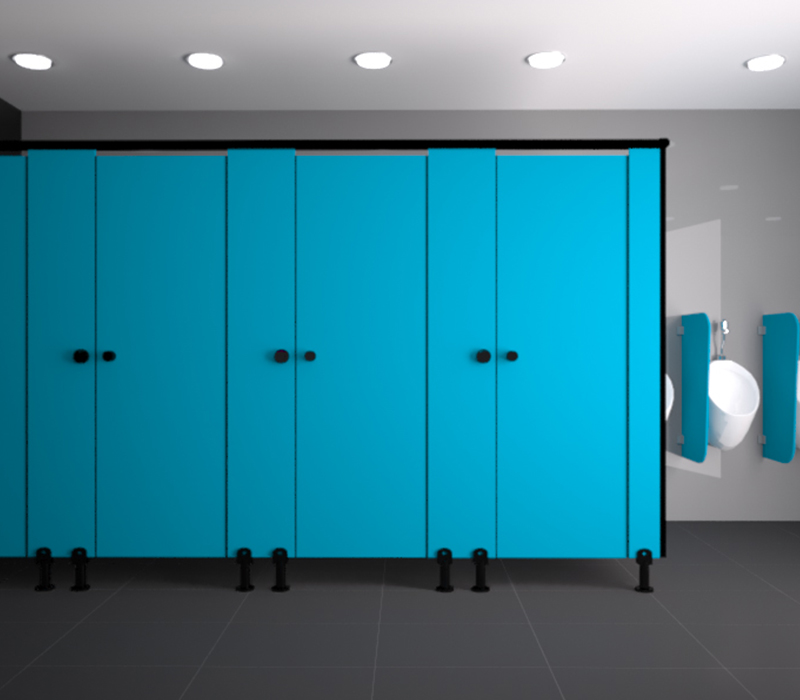

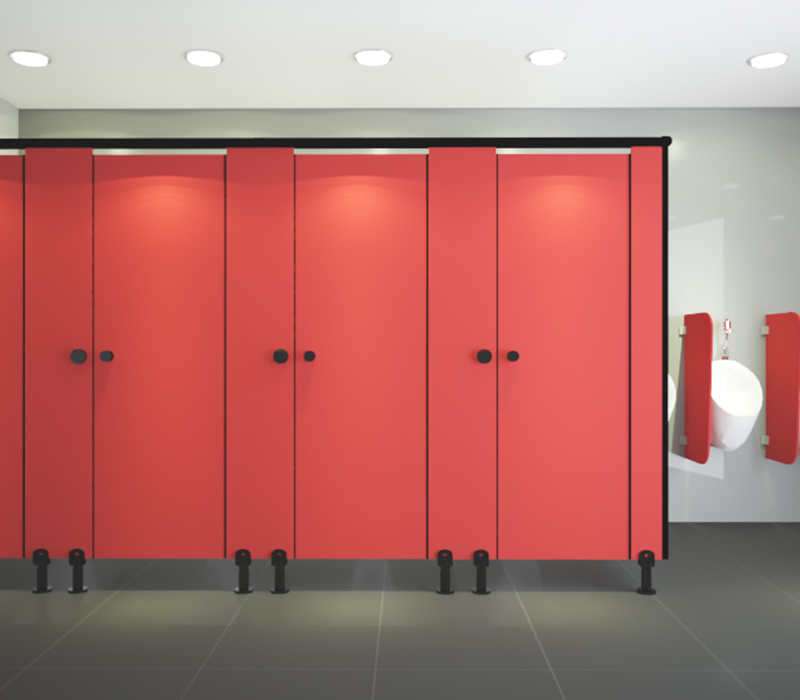

Presenting serenity and simplicity at its finest, the CW shine Nylon series is the typical model for restroom cubicles which provide easy construction and high durability. The CW shine Nylon cubicle model is aesthetically designed with the extruded anodised aluminum top rail and polyamide hardwares, for giving a clean and a lean look to the restroom setup. its intermediate panel comprises of one undivided piece and has no joints in between. all pilasters as well as doors are 12 mm or 18mm thick with chamfered edges. Thus, for those who like minimalistic designs, CW shine Nylon is the answer.

PRODUCT DETAILS:

  • Nylon Coated Adjustable Foot
  • Door Knob & Privacy Indicator
  • Anodized Stainless Steel Door Stopper Channel
CUBICLE WORLD ADVANTAGES
Technical Specifications

The adjustable foot that supports the pilasters is made from corrosion resistant (Polyamide 6) and its base is anchored to the floor with nylon plug inserted into ground with nylon plug inserted into ground with stainless steel screws. There is ground clearance of 150 mm. Nylon U-channels are used to attach the divider panel with stainless steel (Grade 304) screw inserts to the wall as well as the mid panel. Nylon top rail is used to fix the pilasters at the top. Door stopper channel provides the nonrebating doors and connecting panels with extra ordinary look. Further the doors are incorporated with the noise deafening tape to reduced the noise effect.

Each restroom cubicle is equipped with the following set of hardware fittings:


  • U Channel
    (Allumunium Black Powder Coated)
  • Top Rail
    (Allumunium Black Powder Coated)
  • Coat Hook

  • Wc Indicator Lock
  • Door Knob
  • Auto Gravity Hinges
  • Adjustable Leg
  • Door Stopper
    (Allumunium Black Powder Coated)
  • F Channel
    (Allumunium Black Powder Coated)
Standard Dimensions General (mm) Physically Challenged (mm)
Width of cubicle 1000 1500
Depth of cubicle 1500 1750
Height of entire cubicle 2000 2000
Width of door 600 900
Height of door 1785 1785
Ground clearance 150 150
