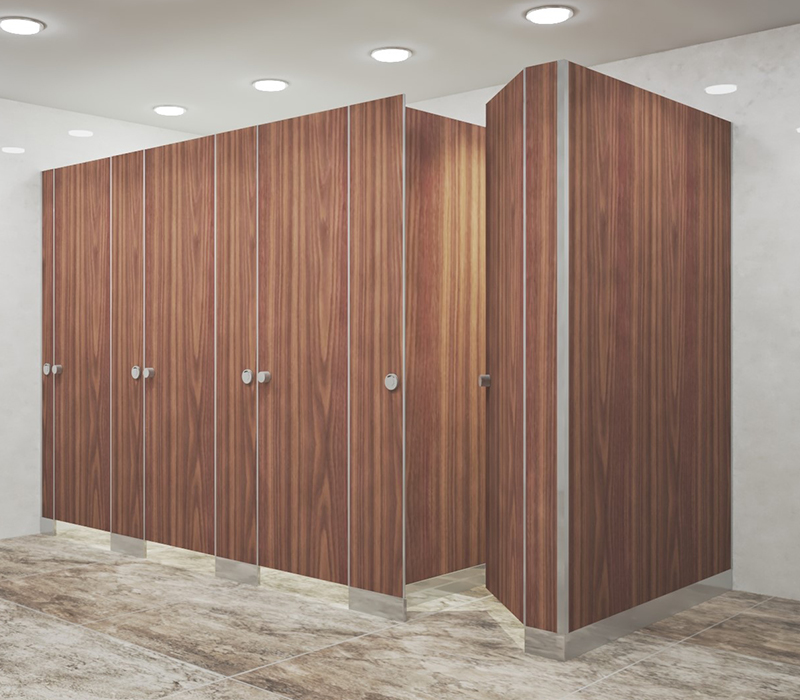

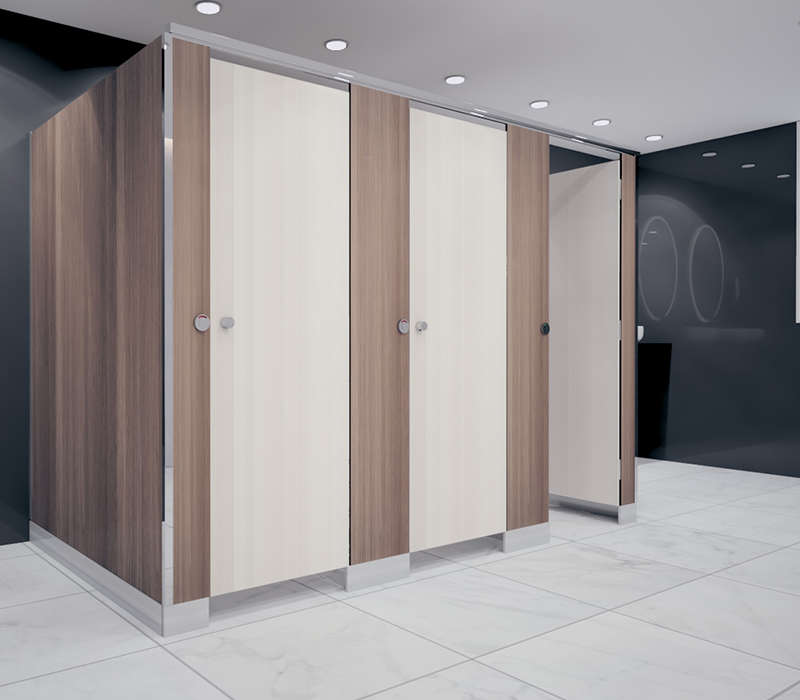

CW Routine Glance SS

PRODUCT DESCRIPTION

CW Routine Glance SS-HPL compact board are manufactured from sheets of special kraft and decor papers, impregnated with thermo setting synthetic resins, fused together under heat and high pressure. HPL compact board has laminates on both sides with either matt finish or textured finish. HPL compact boards arer available in a variety of brilliant colours, woodgrains and tacile patterns. For surface finishes, you have the choices of matt or glossy. New 'MicroDot' tacile finish is available upon request.

PRODUCT DETAILS:

  • Stainless Steel Top Rail in SS finish
  • Alloy Privacy Indicator
  • Clear Floor Concept
  • Alloy Privacy Thumb Turn
CUBICLE WORLD ADVANTAGES
Technical Specifications

The adjustable foot that supports the pilasters is made from stainless steel (Grade 304) and its base is anchored to the floor with nylon plug, fixed into ground with stainless steelscrews. There is a ground clearance of 150 mm. Stainless Steel U-channels are used to attach with the divider panels to the wall as well as the mid panel with stainless steel (Grade 304) screw inserts. Stainless Steel top rail coated in stainless steel colour is used to fix the pilasters at the top. Doors are incorporated with the noise deafening tape to reduce the noise effect. All other fittings like hinges, coat hook, adjustable foot and lock set/latch indicator is manufactured in stainless steel.

Each restroom cubicle is equipped with the following set of hardware fittings:


  • U Channel
    (Stainless Steel 304)
  • Top Rail
    (Stainless Steel 304)
  • F Channel
    (Stainless Steel 304)
  • Coat Hook
    (Stainless Steel 304)
  • Wc Indicator Lock
    (Stainless Steel 304)
  • Door Knob
    (Stainless Steel 304)
  • Auto Gravity Hinges
    (Stainless Steel 304)
  • SHOE-BOX UP
    (Stainless Steel 316)
Standard Dimensions General (mm) Physically Challenged (mm)
Width of cubicle 1000 1500
Depth of cubicle 1500 1750
Height of entire cubicle 2100 2100
Width of door 600 900
Height of door 1785 1785
Ground clearance 150 150
