CW Floppy

PRODUCT DESCRIPTION

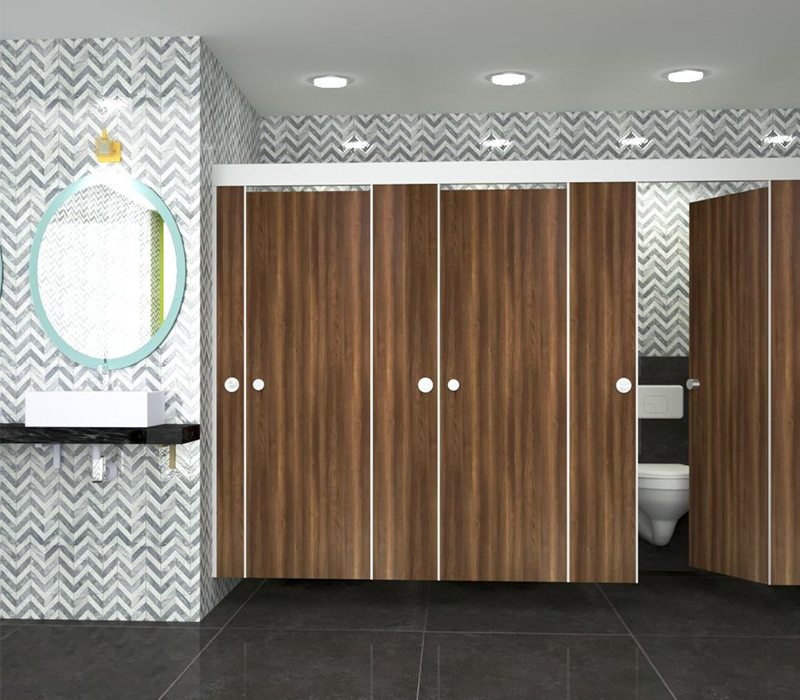

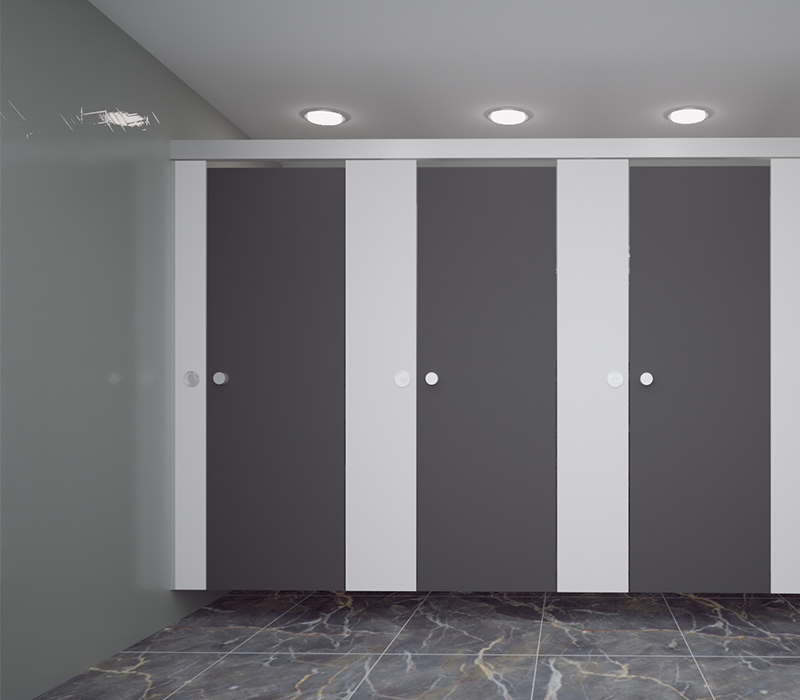

CW Floppy are tailor-made for restrooms. These cubicles have a clear floor concept which is very friendly as far as the maintenance is concerned. These cubicles can be easily installed due to their contemporary designs. Their floater concept gives them a natural yet classic touch. To enhance the exquisiteness, all doors are 12 mm or 18mm thick and their stainless steel hardware fittings make these cubicles highly durable and longlasting. These cubicles are recommended for commercial complexes, sports clubs and gyms etc.

PRODUCT DETAILS:

  • Stainless Steel Top Rail in SS finish
  • Alloy Privacy Indicator
  • Clear Floor Concept
  • Alloy Privacy Thumb Turn
CUBICLE WORLD ADVANTAGES
Technical Specifications

The aluminum hollow D shape Toprail (Grade- 6063 T-6) is first held to the concrete wall on both ends by MS ā€˜Lā€™ angel which is fixed onto the wall with stainless steel screws. The front pilaster are fixed into the Toprail with stainless steel screw insert on the back side on Toprail, the SS U-Channel are attached with the divider panel to the wall as well as the mid panel. There is ground clearance of 150mm

Each restroom cubicle is equipped with the following set of hardware fittings:


  • U Channel
    (Stainless Steel 304)
  • Top Rail
    (Alumunium Powder Coated)
  • F Channel
    (Stainless Steel 304)
  • Coat Hook
    (Stainless Steel 304)
  • Door Stopper
    (Stainless Steel 304)
  • Auto Gravity Hinges
    (Stainless Steel 304)
  • Wc Indicator Lock
    (Stainless Steel 304)
  • Door Knob
    (Stainless Steel 304)
Standard Dimensions General (mm) Physically Challenged (mm)
Width of cubicle 1000 1500
Depth of cubicle 1500 1750
Height of divider 1785 1785
Height of entire cubicle 2100 2100
Width of door 600 900
Height of door 2035 2035
Ground clearance 150 150
